Massey Ferguson 3, 9, 10, and 12 Baler - Service Manual
Product Description

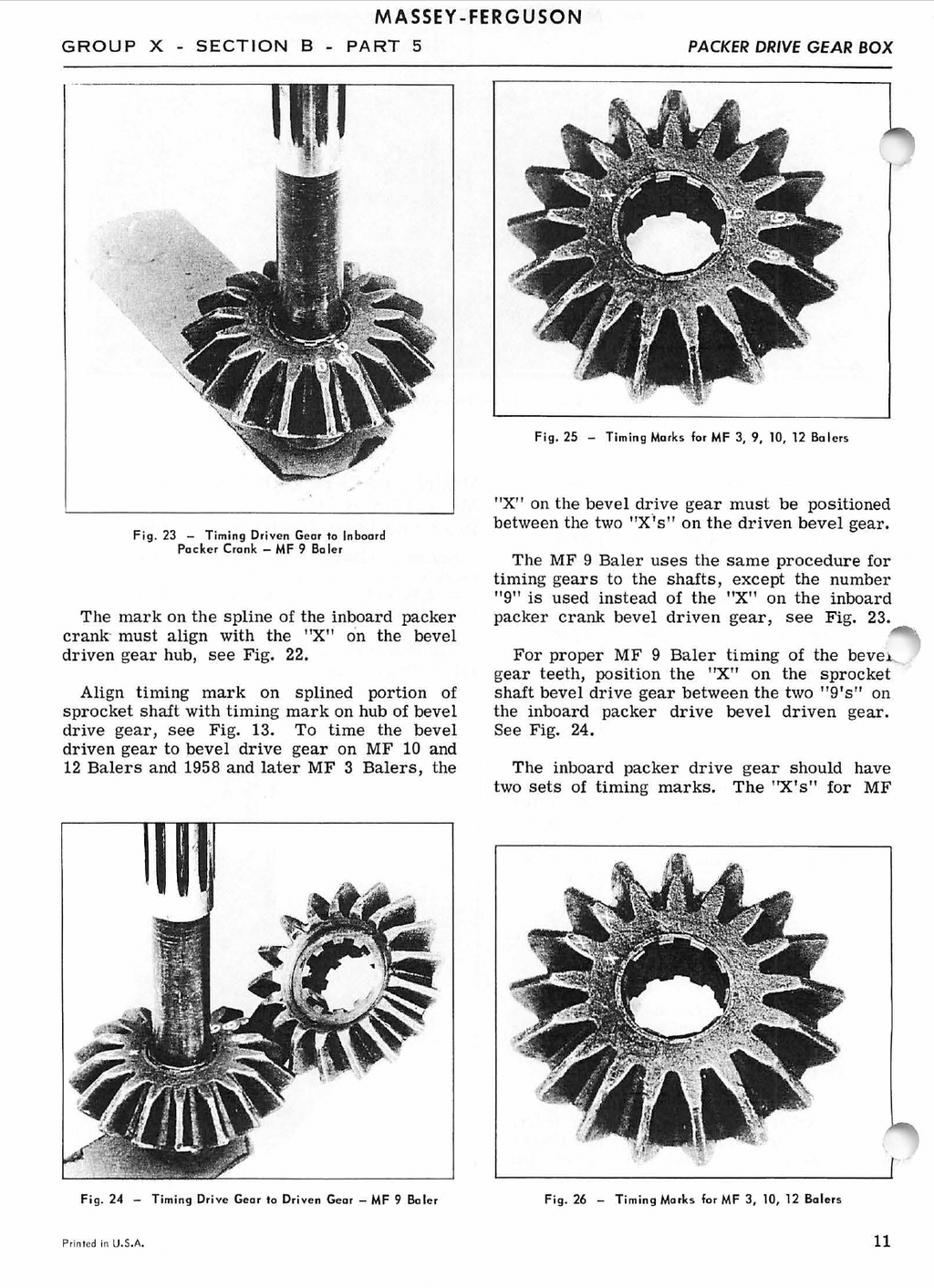

This complete service manual covers Massey Ferguson 3, 9, 10, and 12 square balers. It provides detailed repair, maintenance, and troubleshooting procedures with specifications and diagrams for all major components.
An essential resource for servicing and repairing Massey Ferguson square balers.
Covers All Years and Serial Numbers - Other websites sell manuals that are incomplete or only cover a specific year of the machine. This manual is guaranteed to be complete and to cover your machine's model year and serial number.
Table of Contents
Lubrication
- PTO Shaft Lubrication
- Main Gear Housing Lubrication
- Packer Drive Housing Lubrication
- Twine Tie Mechanism Lubrication
- Roller Chains Lubrication
- Needle Bearing Lubrication
- Wheel Bearing Lubrication
- Wire Tie Mechanism Lubrication
Flywheel and Driving Dog
- Flywheel Removal
- Inspection and Assembly
Main Drive Assembly
- Bevel Gear Main Drive
- Removal and Disassembly
- Inspection and Assembly
- Hypoid Gear Main Drive
- Removal and Disassembly
- Inspection and Assembly
Packer Drive Gear Box
- Removal and Disassembly
- Packer Gear Box Timing
- Inspection and Assembly
- Installing Gear Box on Baler
- Timing Packer to Plunger
Knotter Mechanisms
Twine Tie Knotter Mechanism
- Removal and Disassembly
- Inspection and Assembly
- Installation
- Knotter Mechanism Adjustments
- Twine Finger Adjustments
- Knotter Disc Adjustments
- Twine Holder Adjustments
- Knotter Hook Adjustments
- Twine Knife Adjustments
Wire Tie Mechanism
- Removal and Disassembly
- Inspection and Assembly
- Installation
- Wire Tie Mechanism Adjustments
- Needle Adjustments
- Twister Hooks Adjustments
- Wire Cutters and Holders Adjustments
- Wire Twist Holder Adjustments
- Twister Cam and Pinion Adjustments
Manual Details
Pages: 56
Years and Serial Numbers: Covers all years and serial numbers
Models: MF 3, 9, 10, and 12 Rectangular/Square balers
Make: Massey Ferguson
Manual Type: Service Manual
