New Holland 268 Hay Baler - Operator's Manual
Product Description
This operator’s manual covers the operation, adjustment, and maintenance of the New Holland 268 square baler. Filled with diagrams, photographs, and clear instructions, it provides the information needed to keep your baler running smoothly and producing quality bales.
Includes guidance on safety precautions, control functions, baling techniques, lubrication, and basic service procedures. A must-have resource for anyone who owns or works with a New Holland 268 square baler.
Covers All Years and Serial Numbers - Other websites sell manuals that are incomplete or only cover a specific year of the machine. This manual is guaranteed to be complete and to cover your machine's model year and serial number.
Table of Contents
Adjustment
- Bale Shape
- Baler Service Chart
- Clutches
- PTO Slip Clutch
- Feeder Carriage
- Knife Adjustment
- Knotter
- Bill Hook
- Brake
- Knife Arm
- Knotter Stack
- Knotter Stop
- Removing End Play
- Twine disc
- Twine Finger
- Twine holder
- Knotter Service Chart
- Metering Wheel Location
- Needles
- Adjustment
- Timing
- Needle Safety Latch
- Needle Yoke Rod
- Picup
- Cam
- Lift Spring
- Slip Clutch
- Wheel (Optional)
- Windguard
- Drive Belt
- Plunger Bearing Adjustment
- Roller Chains
General
- Optional Equipment
- Ordering Parts

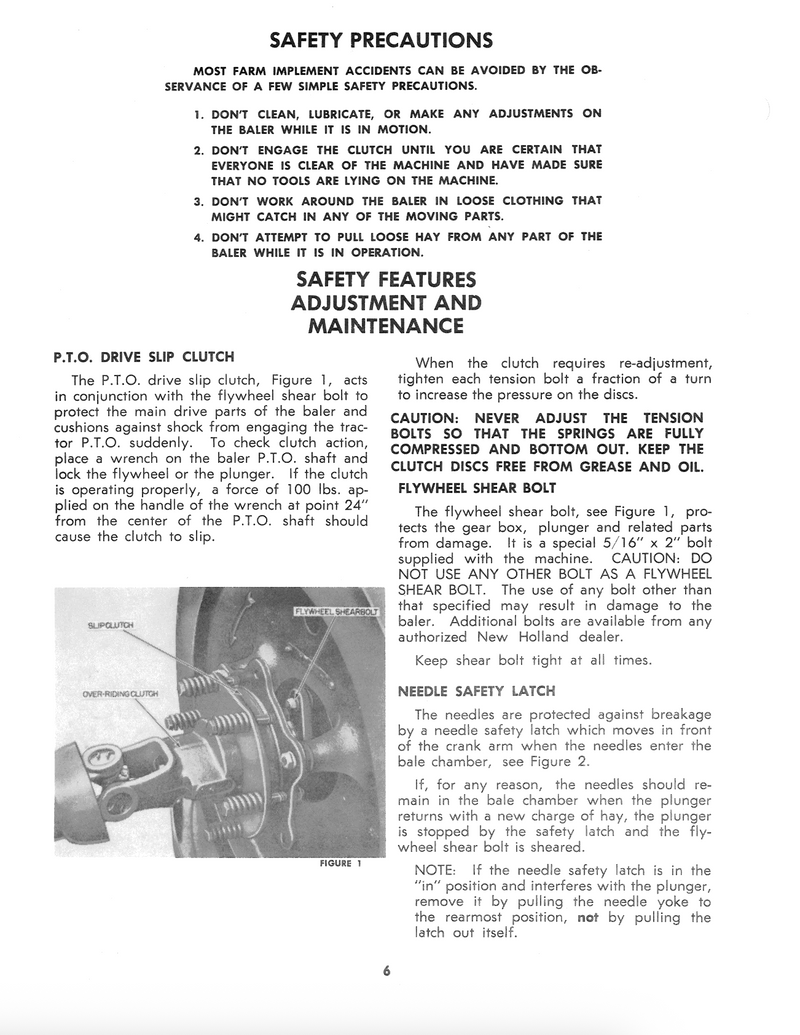

- Safety Precautions
- Specifications
- Warranty
Lubrication
Maintenance
- Main Gearbox Pickup
- Cam Follower
- Fingers
- Tooth Pipe
- PTO Drive
- Storing the Baler
- Tire Pressures
- "Loctite"
Operation
- Attaching the Baler to Tractor
- Before Using your Baler
- Bale Length
- Bale Tying
- Bale Weight
- Hydraformatic
- Jack (Optional)
- Slip Clutch Adjustment
- Starting the Baler
- Threading the Baler
- Transporting Baler
- Windrow Preparation
- Wind Guard
Safety Features
- Needle Safety Latch
- PTO Slip Clutch
- Shearbolts
- Flywheel
- Knotter Drive
Manual Details
Pages: 44
Years and Serial Numbers: Covers all years and serial numbers
Models: 268
Make: New Holland
Manual Code: 42026810
Manual Type: Operator's Manual
