New Holland 275 Hay Baler – Operator’s Manual
Product Description
This operator’s manual covers the operation, adjustment, maintenance, and troubleshooting of the New Holland 275 square hay baler (Hayliner). Includes diagrams, photographs, and clear instructions to help keep your baler running smoothly and producing quality bales.
Covers All Years and Serial Numbers - Other websites sell manuals that are incomplete or only cover a specific year of the machine. This manual is guaranteed to be complete and to cover your machine's model year and serial number.

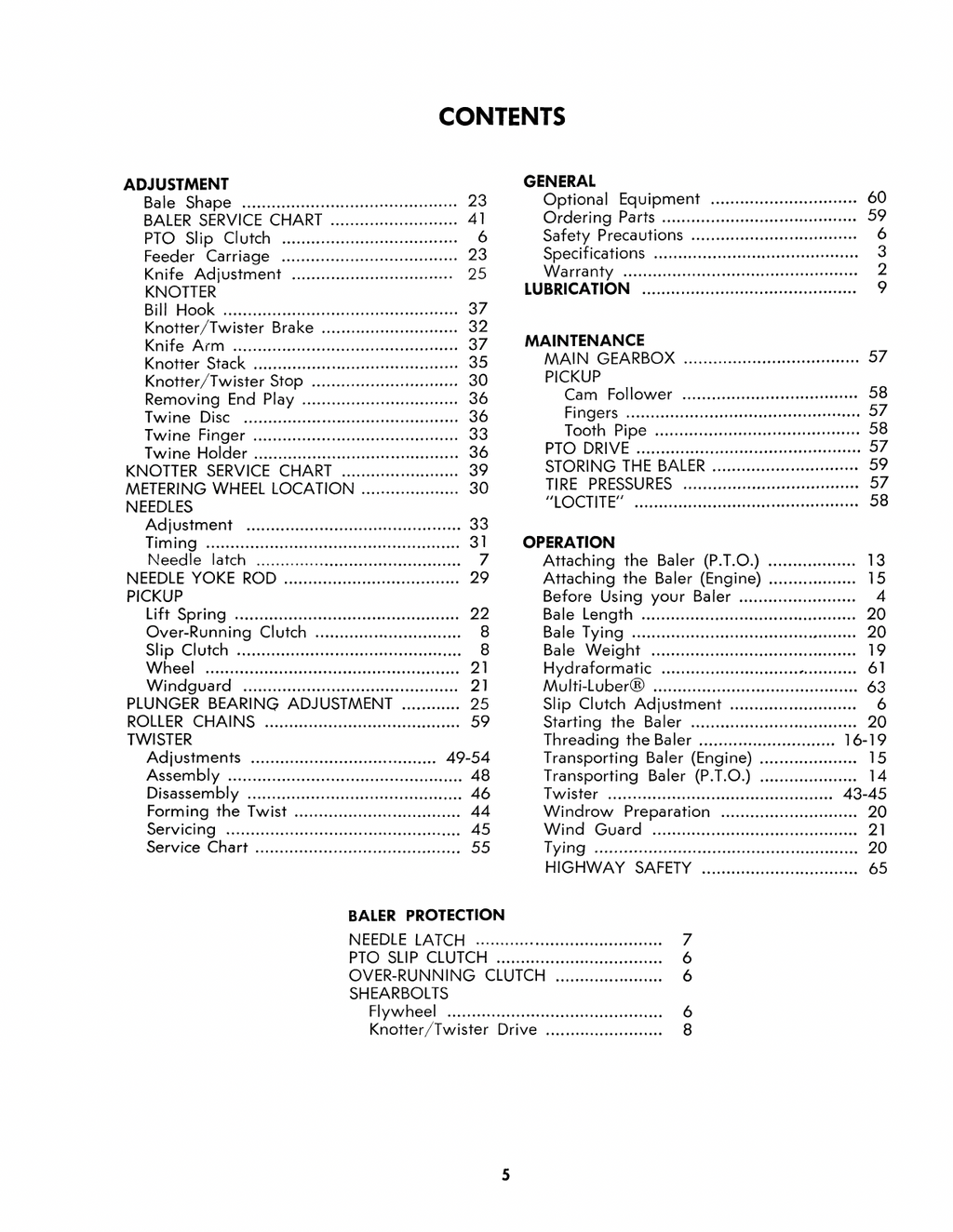

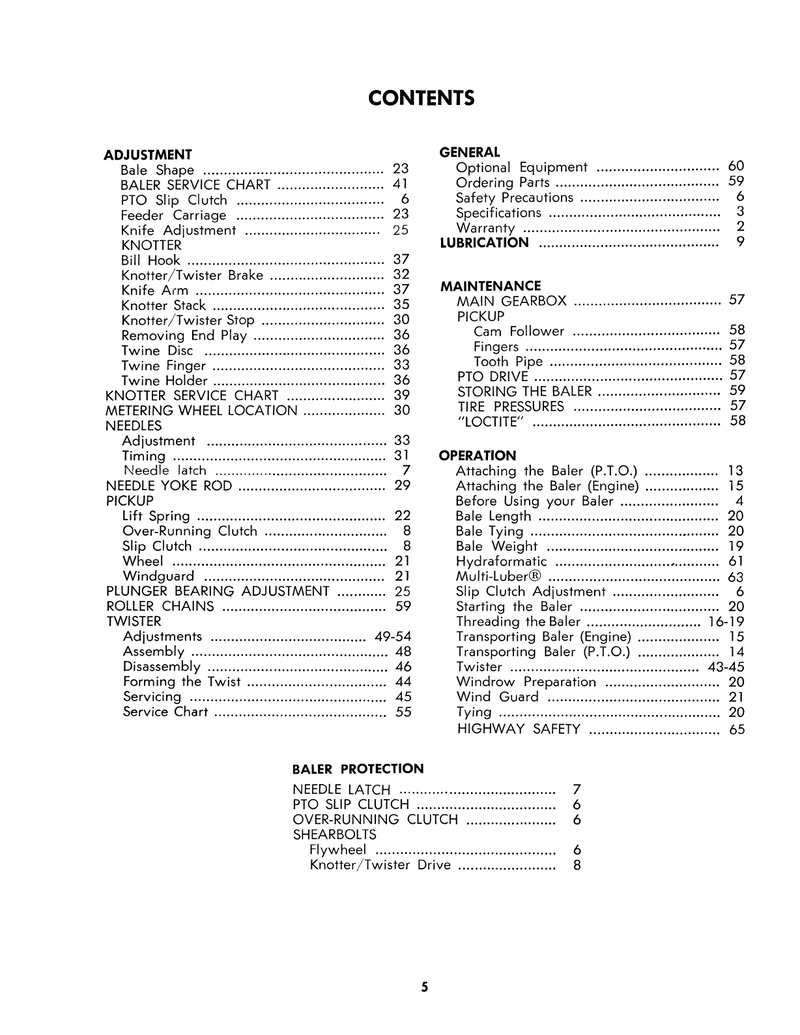

Table of Contents
ADJUSTMENT
- Bale Shape
- BALER SERVICE CHART
- PTO Slip Clutch
- Feeder Carriage
- Knife Adjustment
- KNOTTER
- Bill Hook
- Knotter/Twister Brake
- Knife Arm
- Knotter Stack
- Knotter/Twister Stop
- Removing End Play
- Twine Disc
- Twine Finger
- Twine Holder
- KNOTTER SERVICE CHART
- METERING WHEEL LOCATION
- NEEDLES
- Adjustment
- Timing
- Needle latch
- NEEDLE YOKE ROD
- PICKUP
- Lift Spring
- Over-Running Clutch
- Slip Clutch
- Wheel
- Windguard
- PLUNGER BEARING ADJUSTMENT
- ROLLER CHAINS
- TWISTER
- Adjustments
- Assembly
- Disassembly
- Forming the Twist
- Servicing
- Service Chart
GENERAL
- Optional Equipment
- Ordering Parts
- Safety Precautions
- Specifications
- Warranty
LUBRICATION
MAINTENANCE
- MAIN GEARBOX
- PICKUP
- Cam Follower
- Fingers
- Tooth Pipe
- PTO DRIVE
- STORING THE BALER
- TIRE PRESSURES
- "LOCTITE"
OPERATION
- Attaching the Baler (PTO)
- Attaching the Baler (Engine)
- Before Using your Baler
- Bale Length
- Bale Tying
- Bale Weight
- Hydraformatic
- Multi-Luber®
- Slip Clutch Adjustment
- Starting the Baler
- Threading the Baler
- Transporting Baler (Engine)
- Transporting Baler (PTO)
- Twister
- Windrow Preparation
- Wind Guard
- Tying
- HIGHWAY SAFETY
BALER PROTECTION

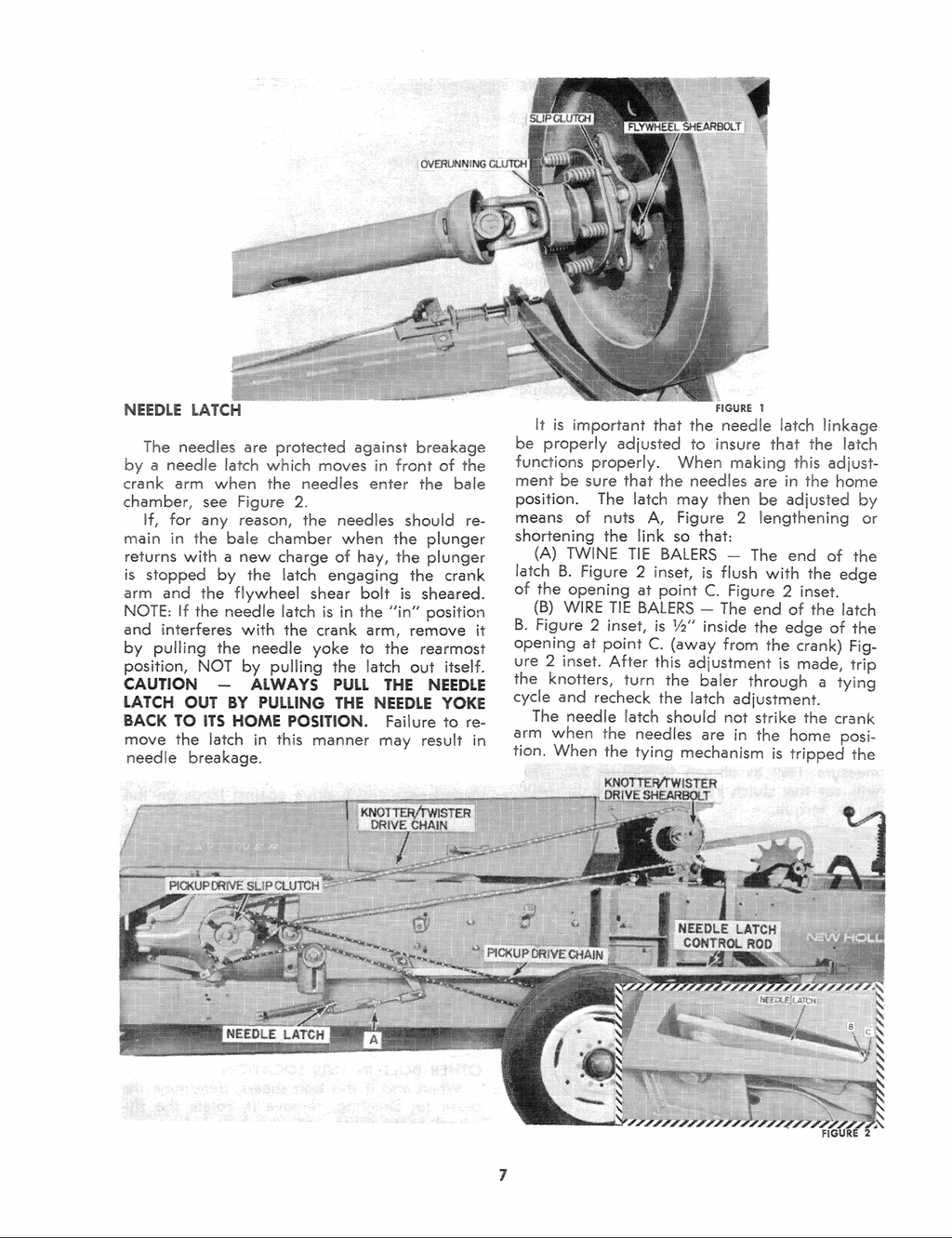

- NEEDLE LATCH

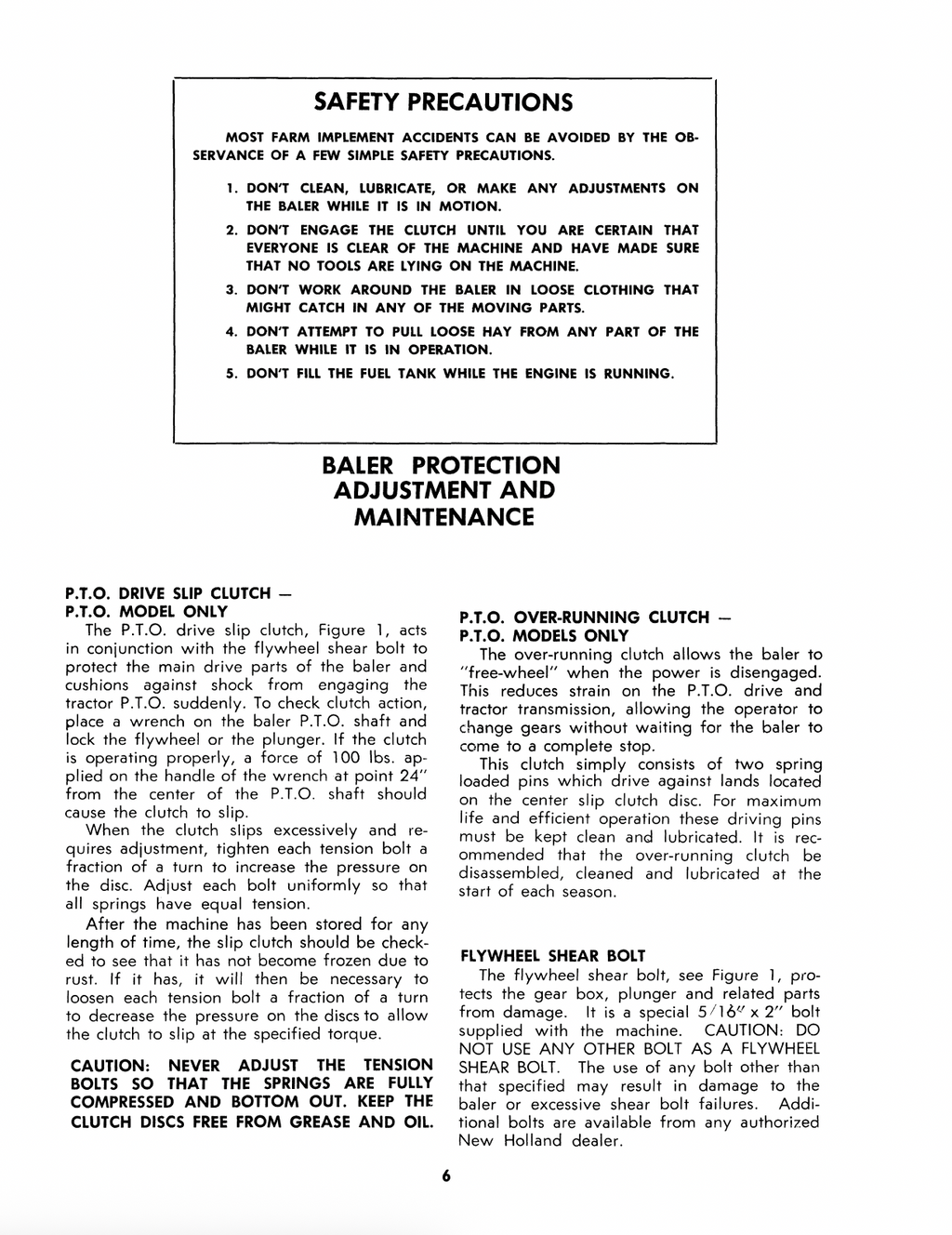

- PTO SLIP CLUTCH
- OVER-RUNNING CLUTCH
- SHEARBOLTS
- Flywheel
- Knotter/Twister Drive
Manual Details
Pages: 66
Years and Serial Numbers: Covers all years and serial numbers
Models: 275
Make: New Holland
Manual Code: 42027514
Manual Type: Operator's Manual
