International 5100 Grain Drill - Parts Catalog
Product Description

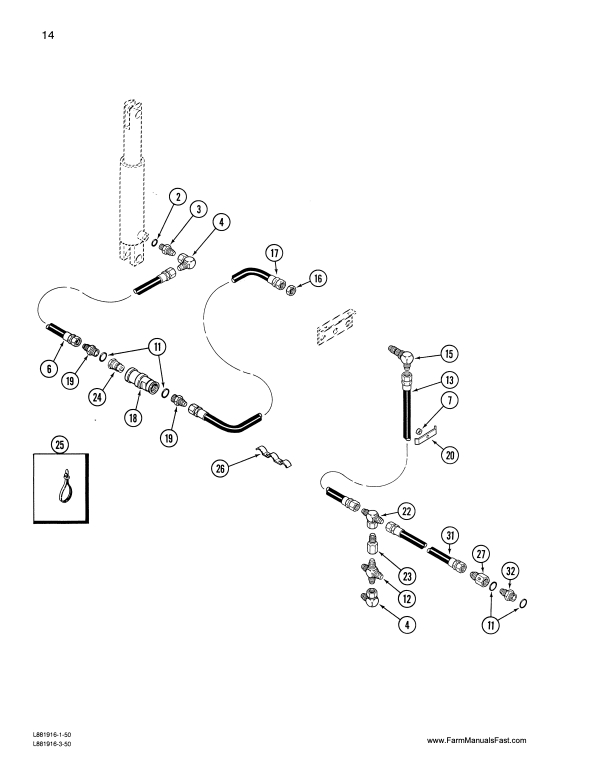

This parts catalog covers the International 5100 end wheel drill planter. It includes exploded parts views and complete part numbers for every component, making it simple to identify and order the correct replacements.
An essential resource for maintaining and repairing your International 5100 drill.
Covers All Years and Serial Numbers - Other websites sell manuals that are incomplete or only cover a specific year of the machine. This manual is guaranteed to be complete and to cover your machine's model year and serial number.
Table of Contents
- Acreage Counter
- Agitator, Grain
- Alternating Check Valve
- Alternating Marker Valve
- Axle Drive
- Bottom Fertilizer Drop
- Brome Seed Attachment
- Drive High Front Mounted
- Hopper
- Seed Feed
- Chain, Drag
- Chain Main Drive
- Chain Safety
- Control Valve, Marker
- Counter, Acreage
- Cylinder, Lift
- Decals
- Depth Band
- Depth Control Hydraulics
- Depth Press Wheel
- Disc Furrow Opener Single
- Disc Furrow Opener Double
- Disc Marker, Folding
- Disc Marker, Hydraulic Control
- Disc Marker, Manual
- Disc Marker, Rigid
- Disc Marker, Supports
- Disc Scraper
- Drag Chain
- Drive, Axle
- Drive, Brome Seed
- Drive, Chain
- Drive, Fertilizer
- Drive, Grain
- Drive, Grass Seed
- Drive, Shield
- Drive Wheel
- Electronic Selector
- Feed, Brome Seed
- Feed Grain
- Feed, Grass
- Feed Indicator, Grass Seed
- Feedshaft Rotation Indicator
- Fertilizer Drive129
- Fertilizer Feed
- Fertilizer Hopper79 thn
- Fertilizer Level Indicator
- Footboard
- Frame, Main
- Furrow Opener, Disc Single
- Furrow Opener, Disc Double
- Furrow Opener, Disc Separate Placement
- Grain Agitator
- Grain Drive
- Grain Feed
- Grain Feed Indicator
- Grain Feed Shifter
- Grain Hopper
- Grass Seed Attachment
- Feed Indicator
- Grass Feed
- Hopper High Front Mounted
- Hopper, Low Rear Mounted
- Seed Drive
- Hand Lift
- Hitch
- Hitch Jack
- Hitch, Trailing
- Hitch, Two Drill
- Beam and Boom
- Boom Control Hydraulics
- Caster Wheel
- Frame Supports and Beam
- Hitch Boom
- Hydraulic Hose Support
- Hydraulic Lift Arm
- Hydraulic Lift Yoke
- Hopper, Brome Seed
- Hopper, Grain and Fertilizer
- 13 Furrow: 7 Inch Spacing
- 16 Furrow: 7 Inch Spacing
- 20 Furrow: 6 Inch Spacing
- 18 Furrow: 7 Inch Spacing
- 16 Furrow: 8 Inch Spacing
- 24 Furrow: 6 Inch Spacing
- 21 Furrow: 7 Inch Spacing
- 20 Furrow: 8 Inch Spacing
- 16 Furrow: 10 Inch Spacing
- Hopper, Grass Seed
- Hydraulic Depth Control
- Hydraulic Hose Support
- Hydraulic, Lift
- Hydraulic Selector
- Hydraulics, Marker
- Indicator Feedshaft Rotation
- Indicator, Fertilizer Level
- Indicator, Grain Feed
- Indicator, Lamp
- Lamp, Indicator
- Lift, Cylinder
- Lift, Hand
- Lift, Hydraulic
- Lift, Power
- Main Frame
- Marker, Disc145,149,
- Marker Control
- Marker Control Valve
- Marker Disc
- Marker Hydraulics
- Marker Hydraulics Electrical System
- Marker Valve, Alternating
- Monitor, Planting
- Partition Panels and Baffles
- Planting Monitor
- Power Lift
- Press Wheel
- Safety Chain
- Shield Main Drive
- Sprockets
- Chain Tightener
- Countershaft Clutch
- Fertilizer Drive
- Grain Driven
- Grass Drive
- Wheel
- Supports, Disc Marker
- Trailing Hitch
- Valve Marker Control
- Valve Row Marker
- Wheel, Drive
- Wheel, Gang Press
- Wheel, Press
- Wheel, Seed Firming
Manual Details
Pages: 138
Years and Serial Numbers: Covers all years and serial numbers
Models: 5100
Years and Serial Numbers Covered: 1988
Make: Case IH
Manual Code: 8-4870
Manual Type: Parts Catalog
