New Holland 1002 and 1012 Stackliner - Operator's Manual
Product Description
This operator’s manual covers the operation, adjustment, and maintenance of New Holland 1002 and 1012 Stackliners. Includes diagrams, photographs, and clear instructions to help ensure proper use and reliable performance in the field.
A must-have resource for anyone who owns or works with a New Holland 1002 or 1012 Stackliner.
Covers All Years and Serial Numbers - Other websites sell manuals that are incomplete or only cover a specific year of the machine. This manual is guaranteed to be complete and to cover your machine's model year and serial number.

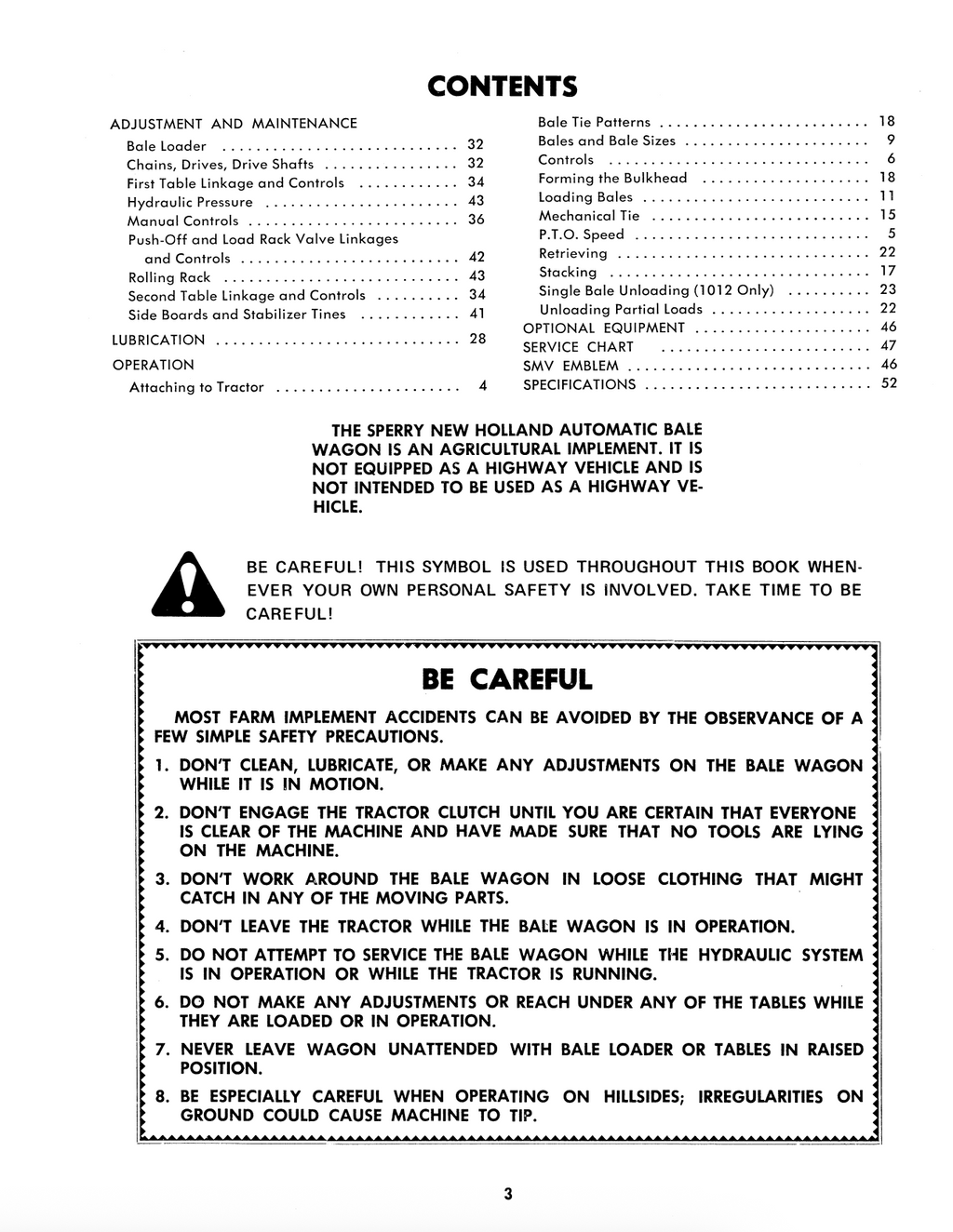

Table of Contents
- ADJUSTMENT AND MAINTENANCE
- Bale Loader
- Chains, Drives, Drive Shafts
- First Table Linkage and Controls
- Hydraulic Pressure
- Manual Controls
- Push-Off and Load Rack Valve Linkages and Controls
- Rolling Rack
- Second Table Linkage and Controls
- Side Boards and Stabilizer Tines
- LUBRICATION
- OPERATION
- Attaching to Tractor
- Bale Tie Patterns
- Bales and Bale Sizes
- Controls
- Forming the Bulkhead
- Loading Bales
- Mechanical Tie
- PTO Speed
- Retrieving
- Stacking
- Single Bale Unloading (1012 Only)
- Unloading Partial Loads
- OPTIONAL EQUIPMENT
- SERVICE CHART
- SMV EMBLEM
- SPECIFICATIONS
Manual Details
Pages: 56
Years and Serial Numbers: Covers all years and serial numbers
Models: 1002 and 1012
Make: New Holland
Manual Type: Operator's Manual
